Fuel Tank, Removing And Installing, Vehicles With 3.0L (B6) Engine With Reducing Agent Metering System: Removing

WARNING: This page is about a different variant/trim than selected.

Follow all safety precautions, refer to WORKING ON FUEL SYSTEM .

Follow the guidelines for clean working conditions, refer to CLEAN WORKING CONDITIONS .

WARNING:

Risk of accident due to the weight of the fuel tank.

  • The fuel tank must be empty when removing it.

-- Drain the fuel tank, refer to FUEL TANK, DRAINING .

-- On a vehicle with air suspension, activate vehicle lift mode, refer to VEHICLE LIFT MODE .

-- Turn off the ignition and remove the key.

WARNING:

Danger due to reducing agent leaking out.

-- Remove the left single seat and the left 2/3 seat bench seat cushion in the second row of seats, refer to Seat Frames .

Fig 1: Cut The Floor Covering Along The Perforation
GWWA20-10184Courtesy of AUDI OF AMERICA, LLC

-- Remove the right rear single seat in the second row of seats, refer to Seat Frames .

WARNING:

Risk of injury.

  • Wear safety gloves

-- Cut the floor covering along the perforation -arrows- on the left and right sides with a carpet knife -1-.

-- Fold carpet cut-out to side -arrow-.

Fig 2: Identifying Locking Flange Cover - Tightening Specifications
GWWA20-10099Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right nuts on the locking flange cover -1 ••• 4- and then remove the cover.

-- Disconnect the connector -arrow- on the left locking flange.

Fig 3: Connecting Connector -Arrow- At Left Locking Flange
GWWA20-10185Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -4- on the right locking flange.

Fig 4: Locking Flange Connector Location
GWWA20-10919Courtesy of AUDI OF AMERICA, LLC

-- If equipped, disconnect the connector -3- on the locking flange.

NOTE:

Place a clean cloth under the separating location to catch any fuel that may leak out.

WARNING:

Very hot fuel can burn your skin.

  • In extreme cases, the fuel lines and the fuel itself in vehicles with a common rail engine can be as hot as 100 °C (212 °F) after the engine has been turned off. Let the fuel cool down before opening any line connections otherwise there is a danger of scalding.
  • Wear safety gloves
  • Wear protective eyewear.

There is a risk of injury because the fuel is under pressure.

  • To reduce pressure in fuel system, lay a clean cloth around the connector and carefully loosen connector.

-- Disconnect fuel lines -1 and 2-. Disconnect the connector couplings, refer to CONNECTOR COUPLINGS, SEPARATING .

-- Open the fuel tank flap.

Fig 5: Identifying Locking Cap -2-
GWWA20-10560Courtesy of AUDI OF AMERICA, LLC

-- Clean the area around the fuel filler tube.

-- Remove the locking cap -1- from the fuel filler tube.

-- Remove the locking cap -2- from the reducing agent filler tube.

NOTE:

Seal the openings on the filler tube with clean plugs to prevent dirt from possibly getting into the chambers.

-- Remove the tank door unit and the rubber buffer, refer to Remove the Tank Flap Unit .

Fig 6: Identifying Fuel Filler Tube Bolts -Arrows-
GWWA20-10561Courtesy of AUDI OF AMERICA, LLC

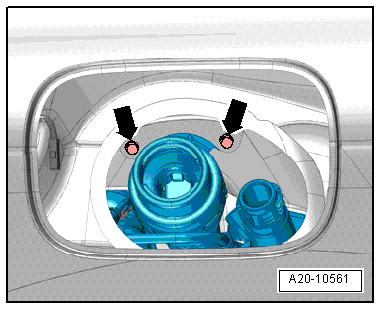

-- Remove the fuel filler tube bolts -arrows-.

WARNING:

Risk of vehicle tipping on hoist with rear axle removed.

  • Secure the vehicle on a hoist before loosening the subframe bolts (for example, load the luggage compartment with about 50 kg).

-- Remove the rear axle, refer to REAR AXLE OVERVIEW .

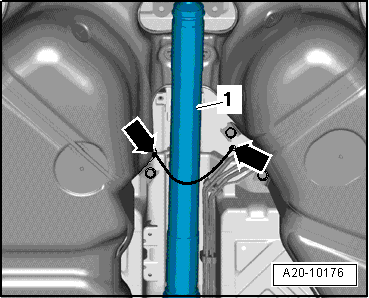

-- Hang driveshaft -1- on body with a suitable chain or with welding wire as shown in illustration -arrows-.

Fig 7: Identifying Hanging Driveshaft -1- On Body With Suitable Chain
GWWA20-10176Courtesy of AUDI OF AMERICA, LLC
NOTE:

Driveshaft CV joints must only be moved without force and only as far as stop which is approximately a 10° angle.

Fig 8: Identifying Dimension -A- To Lower Driveshaft
GWWA20-10177Courtesy of AUDI OF AMERICA, LLC

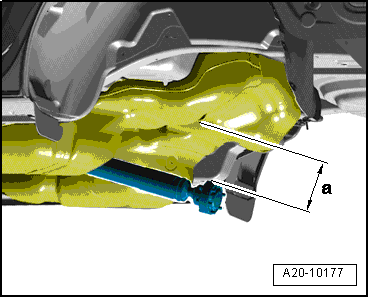

-- Lower driveshaft by dimension -a-.

-- Remove the right rear wheel housing liner, refer to Wheel Housing Liners .

-- Remove the reducing agent active tank, refer to REDUCING AGENT ACTIVE TANK, REMOVING AND INSTALLING .

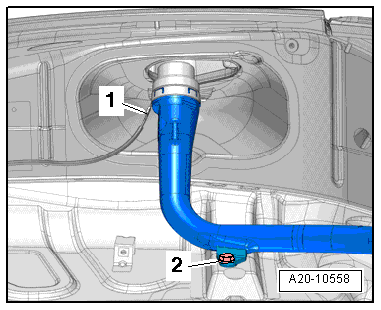

-- Disconnect the Ground (GND) wire -1- from the fuel filler tube.

Fig 9: Installation Position Of Ground (GND) Connection
GWWA20-10558Courtesy of AUDI OF AMERICA, LLC

-- Remove the fuel filler tube bolts -arrows-.

-- Remove the nuts -arrows- and then remove the fuel filler tube protective plate -3-.

Fig 10: Identifying Drive Pins -1-, Bracket -2-, Nuts -Arrows-, And Fuel Filler Tube Protective Plate -3-
GWWA20-10562Courtesy of AUDI OF AMERICA, LLC

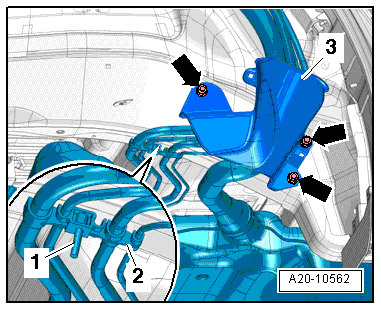

-- Drive pins -1- through with a punch.

-- Remove the bracket -2- with the lines from the longitudinal member.

-- Remove the left and right bolts on the floor panel trim near the fuel tank, refer to FRONT AND REAR DOOR TRIM MOLDING, REMOVING AND INSTALLING .

-- Remove the reducing agent passive tank, refer to REDUCING AGENT ACTIVE TANK, REMOVING AND INSTALLING .

NOTE:

Place a clean cloth under the separating location to catch any reducing agent that may leak out.

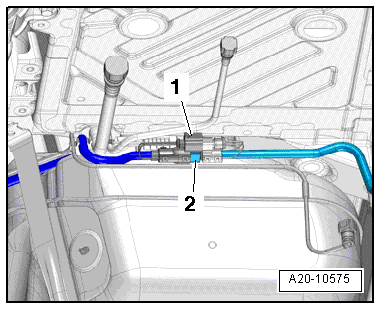

Fig 11: Identifying Connector -1- And Metering Line -2- With Release Button
GWWA20-10575Courtesy of AUDI OF AMERICA, LLC
WARNING:

The reducing agent can cause skin irritation.

  • Avoid contact with skin and eyes! Always wear protective gloves and safety glasses.
  • If reducing agent should get on your skin, wash it off immediately with soap and water.
  • If reducing agent gets in your eye, rinse the eye for several minutes with water.
  • Never inhale or swallow the reducing agent!
  • Should you swallow any reducing agent, rinse your mouth, drink plenty of water and contact a doctor immediately.

-- Disconnect the metering line -2-. Disconnect the connector couplings, refer to CONNECTOR COUPLINGS, SEPARATING .

-- Disconnect the connector -1-.

-- Unclip the fuel supply line -1- and the fuel return line -2- on the fuel tank -arrows-.

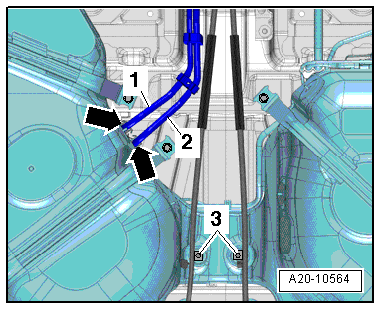

Fig 12: Identifying Fuel Supply Line -1-, Fuel Return Line -2- On Fuel Tank -Arrows-, And Clips For Parking Brake Cable Bracket -3-
GWWA20-10564Courtesy of AUDI OF AMERICA, LLC

-- Unclip the parking brake cable bracket -3- from the fuel tank.

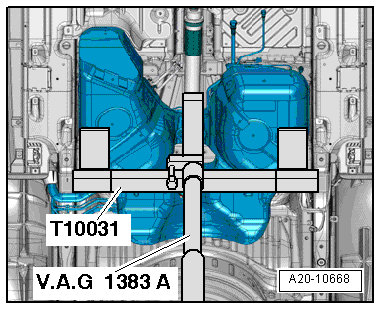

-- Place the Engine/Gearbox JackVAG1383A with the Subframe SupportT10031 (without threaded rods) under the fuel tank to support it as shown.

Fig 13: Placing V.A.G1383A With T10031 (Without Threaded Rods) Under Fuel Tank
GWWA20-10668Courtesy of AUDI OF AMERICA, LLC

-- Support the fuel tank with the Engine/Gearbox Jack VAG1383A and the Subframe Support T10031.

-- A second technician must also support fuel tank by hand.

-- Identify location of fuel tank securing bands.

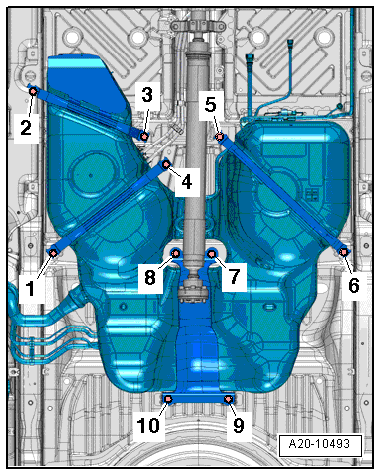

Fig 14: Identifying Right Front Tension Strap -2 To 3-, Rear Left / Right Tensioning Band -1, 4, 5 And 6-, And Support Plate -7, 8, 9 And 10-
GWWA20-10493Courtesy of AUDI OF AMERICA, LLC
WARNING:

Risk of accident due to the weight of the fuel tank.

  • The fuel tank must be empty when removing it.

-- Remove the bolts -1 to 10- and remove the securing bands and carrier plate.

NOTE:

To improve clarity, the fuel tank is shown without the Engine/Gearbox JackVAG1383A.

-- Next lower back of fuel tank to driveshaft.

-- A second technician is needed to hold the rear edge of the fuel tank.

-- Carefully guide filler tube out of wheel housing so avoid paint damage.

-- Lower the fuel tank with the Engine/Gearbox JackVAG1383A while a second technician guides it.
