Fuel Cooler Overview

WARNING: This page is about a different variant/trim than selected.

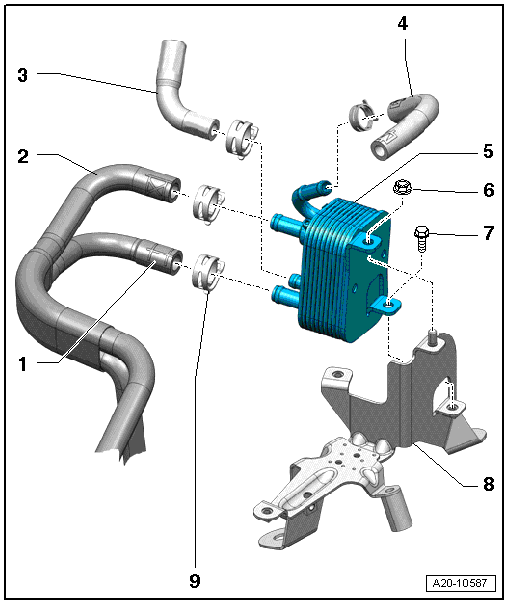

Fig 1: Identifying Fuel Cooler Overview
GWWA20-10587Courtesy of AUDI OF AMERICA, LLC
  1. Coolant Hose
  2. Coolant Hose
  3. Fuel Return Hose
    • To the fuel tank
  4. Fuel Return Hose
    • From the fuel filter
  5. Fuel Cooler
  6. Nut
    • 8 Nm
  7. Bolt
    • 8 Nm
  8. Bracket
  9. Spring Clamp
