Transmission, 6-Cylinder, Removing 3.6L FSI Engine

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Special Tools -- Transmission, Removing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine support bridge10-222A
Spindle10-222 A/10
Shackle10-222A/12
Engine Support Adapter10-222A/22
Engine/transmission jackV.A.G 1383/A
Engine Support Basic SetT40091

Special tools and workshop equipment required

Thrust bearing from Assembly Tool3301

Fig 2: Assembly Tool 3301
Courtesy of AUDI OF AMERICA, LLC
Engine Support Supplement SetT40093

Fig 3: Engine Support Supplement Set T40093
Courtesy of AUDI OF AMERICA, LLC
Step ladderVAS 5085

Fig 4: Identifying Step Ladder VAS 5085
Courtesy of AUDI OF AMERICA, LLC
Pry lever80-200

Fig 5: 80-200 Pry Lever
Courtesy of AUDI OF AMERICA, LLC

NOTE:

Automatic Transmission Clean Working Conditions, refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

General Repair Instructions. Refer to REPAIR INFORMATION .

Procedure

Fig 6: Identifying Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Install engine support bridge. FRONT FINAL DRIVE, REMOVING AND INSTALLING .

-- Activate the vehicle lift mode if the vehicle has air suspension.VEHICLE LIFT MODE

-- Lift the vehicle

-- Remove the bolts and remove front -1- and rear -2- noise insulation.

-- Wrap a suitable wood block -1- with dimension -a- with an elastic layer (e.g. rubber).

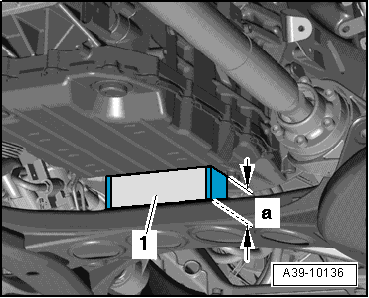

Fig 7: Identifying Wooden Block -1-

Courtesy of AUDI OF AMERICA, LLC

-a- = 40 mm

-- Place wooden block between ATF oil pan and subframe.

NOTE:

This procedure is necessary so that ATF oil pan does not lie directly on subframe when assembly is lowered.

CAUTION:

Risk of damage

Follow the procedure for removing and installing the transfer case exactly.

-- Remove transfer case TRANSFER CASE, REMOVING AND INSTALLING .

-- Remove the ball head -2- on the selector lever cable from the selector shaft lever using the pry lever80-200.

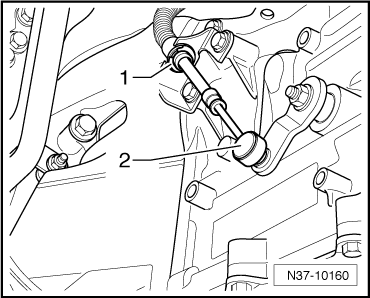

Fig 8: Identifying Locking Washer & Selector Lever Cable

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clips -1- and then remove the selector lever cable from transmission.

NOTE:

Do not bend or kink the selector lever cable.

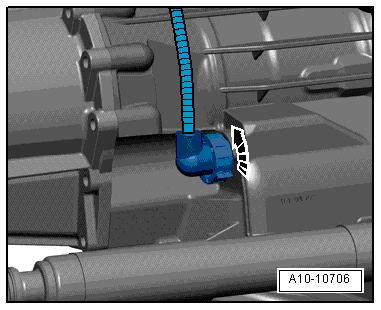

Fig 9: Turning Screw Connection Counter-Clockwise -Arrow-

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying transmission control module -J217- (Mechatronic) with static discharge.

Do not touch contacts in transmission connector with hands.

-- To discharge static, touch vehicle ground with hand (without glove).

-- Disconnect the connector on transmission by rotating screw connections counter-clockwise -arrow-.

-- Remove the ATF pipe -1- from transmission.

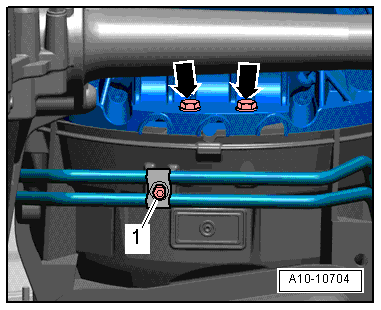

Fig 10: Identifying Lower Bolts -Arrows- For Engine To Transmission Connection

Courtesy of AUDI OF AMERICA, LLC

Vehicles with 4-zone climate control:

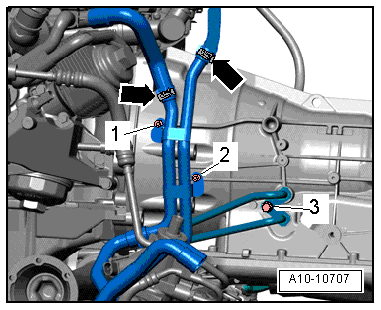

Fig 11: Identifying Rear Coolant Pipe Bolts -1 To 2- And Bolt -3- For ATF Lines From Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Remove rear coolant pipe bolts -1 and 2-.

NOTE:

Ignore -arrows-.

All:

NOTE:

Place a cloth under separation point to collect to escaping ATF.

-- Remove the bolt -3- and then remove the ATF pipes from the transmission.

-- Seal off the ATF pipes and transmission with suitable plugs.

-- Remove the starter STARTER, REMOVING AND INSTALLING .

-- To loosen torque converter bolts, counterhold crankshaft at vibration damper bolt.

Fig 12: Identifying Torque Converter Bolts

Courtesy of AUDI OF AMERICA, LLC

-- In opening for removed starter, remove 3 torque converter bolts while rotating crankshaft ¹ /₃ rotation further in direction of engine rotation.

-- Install Transmission Support3282 on Engine/Transmission JackV.A.G 1383 A.

Fig 13: Identifying 3282 onto V.A.G 1383 A

Courtesy of AUDI OF AMERICA, LLC

-- Place Adjustment Plate3282/49 on Transmission Support3282 as shown in illustration.

-- Align the arms of the transmission support to correspond with the holes in the adjustment plate.

-- Install support elements as shown on adjustment plate.

-- Roll the engine/transmission jackV.A.G 1383 A with transmission support3282 under the transmission.

NOTE:

The arrow symbol on the adjustment plate points in the direction of travel.

-- Align the adjustment plate so that it is parallel to the transmission.

-- Fasten mount on threaded hole at rear of transmission with a bolt -arrow- and secure.

-- Position side mounts at left and right in oil pan notch as shown in illustration.

Fig 14: Positioning Side Mounts On Left And Right In Oil Pan Notch

Courtesy of AUDI OF AMERICA, LLC

-- Raise the transmission slightly.

-- Remove the wooden block -1-.

Fig 15: Identifying Wooden Block -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower bolts -arrows- from the engine to transmission connection.

Fig 16: Identifying Lower Bolts -Arrows- For Engine To Transmission Connection

Courtesy of AUDI OF AMERICA, LLC

-- Remove remaining bolts from engine to transmission connection.

Fig 17: Identifying Transmission To Engine Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Press transmission off engine, thereby removing the torque converter from drive plate with a pry bar -arrow-.

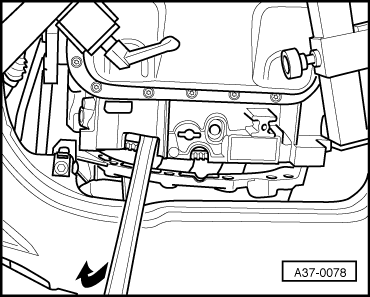

Fig 18: Using Assembly Lever To Press Torque Converter Off Drive Plate Of Engine

Courtesy of AUDI OF AMERICA, LLC

-- Lower the transmission using engine/transmission jackV.A.G 1383 A.
