Engine Mount And Engine Support, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter. Refer to AIR FILTER HOUSING .

-- Remove the air guide hose by loosening the hose clamps -arrows-.

Fig 1: Air Guide Hose Clamps -Arrows-
GWWA23-10588Courtesy of AUDI OF AMERICA, LLC
Fig 2: Charge Air Hose Clamps -Arrows- And Hose
GWWA10-10484Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation -1 and 2-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

Fig 3: Locating Front/Rear Noise Insulation
GWWA10-10441Courtesy of AUDI OF AMERICA, LLC

-- Remove the stabilizer bar. Refer to STABILIZER BAR, REMOVING AND INSTALLING .

Fig 4: Stabilizer Bar And Bolts
GWWA40-10083Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right nuts -1- and bolts -arrows-.

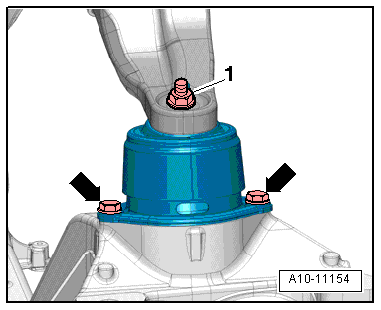

Fig 5: Identifying Left Engine Mount Nut -1- And Bolts -Arrows-
GWWA10-11154Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right front wheel housing liners. Refer to Wheel Housing Liners .

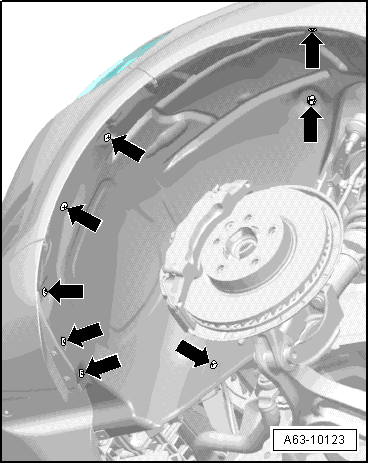

Fig 6: Left Front Wheel Housing Liner And Screws
GWWA63-10123Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- on the right longitudinal member and disconnect the ground wire form the threaded pin.

Fig 7: Identifying Ground (GND) Cable On Longmember
GWWN10-10018Courtesy of AUDI OF AMERICA, LLC

-- Position the Engine Support Bridge 10-222A on the fender bolting edges as shown in the illustration.

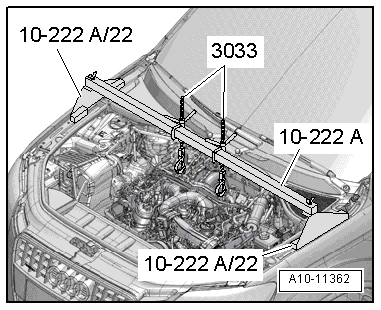

Fig 8: Positioning Engine Support Bridge 10-222A Onto Fender Bolting Edges
GWWA10-11362Courtesy of AUDI OF AMERICA, LLC

-- Attach the carabineer hook spindles to the rear engine lifting eyes.

-- Remove the left and right vacuum hose -arrow- from the engine mount and free it up from the engine support.

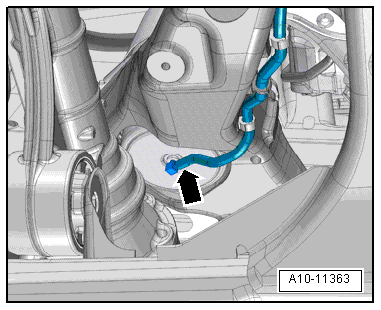

Fig 9: Remove/Install Left And Right Vacuum Hose -Arrow- At Engine Mounts
GWWA10-11363Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

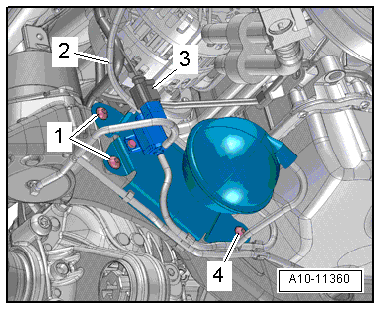

Fig 10: Remove/Install Mount With Electrohydraulic Engine Mount Solenoid Valve -N398- And Vacuum Reservoir
GWWA10-11360Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vacuum hose -2- and free it up.

-- Remove the bolts -1 and 4-.

-- Remove the mount with the Electrohydraulic Engine Mount Solenoid Valve -N398- and the vacuum reservoir.

-- Loosen the clamps -1 and 4- and remove the air guide hose.

Fig 11: Identifying Air Guide Hoses -1 & 4- And Bolts -2 & 3-
GWWA19-10296Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 3- and then remove the air guide pipe downward.

-- Remove the 2 bolts and then remove the steering gear heat shield -A-.

Fig 12: Identifying Steering Gear Heat Shield -A-
GWWN39-1233Courtesy of AUDI OF AMERICA, LLC
CAUTION:

The airbag spiral spring could be damaged.

  • Separate universal joint from steering gear only when front wheels are in straight ahead position.
  • Do not change steering wheel position and steering gear position any more, secure steering wheel with adhesive tape.

-- Remove the bolt -B- for the universal joint. Refer to Removing .

-- Remove universal joint from steering gear.

-- Place the Engine/Gearbox JackVAG1383A under the subframe.

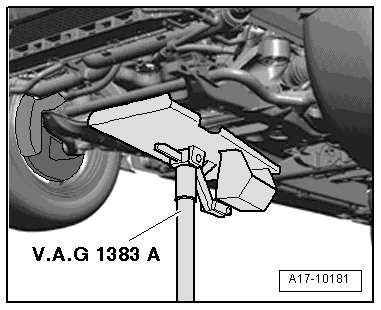

Fig 13: Placing Engine/Gearbox Jack VAG1383A Under Subframe
GWWA17-10181Courtesy of AUDI OF AMERICA, LLC

-- Mark location of subframe and engine carrier to longitudinal members with a felt-tip pen.

Fig 14: Subframe, Engine Carrier, Crossmember And Bolts
GWWA10-10439Courtesy of AUDI OF AMERICA, LLC
WARNING:

The subframe could cause an accident if it is not secured.

  • The subframe bolts -2- and the transmission carrier bolts -1- must never be loosened.

-- Remove the bolts -3 and 4- then lower the subframe with the front engine carrier.

-- Lift up the engine with the spindles -1- for the Lifting Tackle 3033 evenly on the left and right to the dimension -a-.

Fig 15: Lift Up Engine With Spindles -1- To Dimension -A-
GWWA10-10928Courtesy of AUDI OF AMERICA, LLC

-- Remove left and right engine bracket.

-- Remove the engine support.
