Overview - Radiator
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

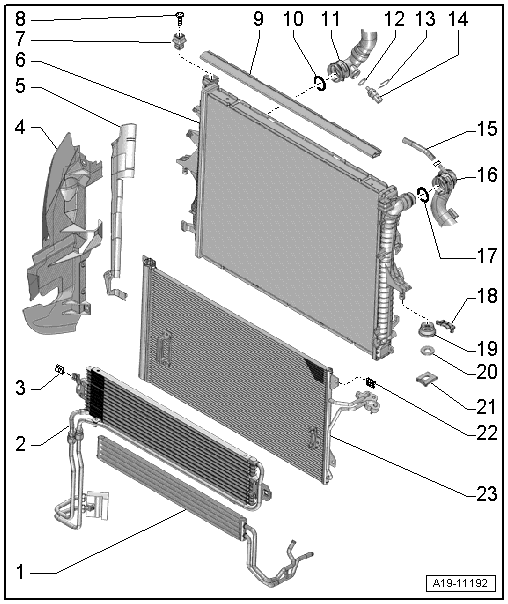

- Hydraulic Oil Cooling Line
- For power steering
- ATF Cooler
- For the automatic transmission
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Change the coolant after replacing
- Clip
- Make sure it is secure
- Air Guide
- Only the right side is shown in the illustration
- Air Guide
- Only the right side is shown in the illustration
- Radiator
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- After replacing, replace all the coolant.
- Grommet
- Bolt
- 5.5 Nm
- Air Guide
- O-ring
- Replace
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator. Refer to Fig 2
- O-ring
- Replace
- Clip
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .
- Coolant Hose
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the radiator. Refer to Fig 2
- O-Ring
- Replace
- Locking Mechanism
- For the cooler mount
- Rubber Buffer
- Washer
- Clip
- Make sure it is secure
- Clip
- Make sure it is secure
- Condenser
- For air conditioning system
-- Remove the old O-ring -2- in the coolant hose -3-.
-- Coat the new O-ring with coolant and install it in the coolant hose.
-- Press the coolant hose onto the connection -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
