Left Upper Coolant Pipe On Transmission, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

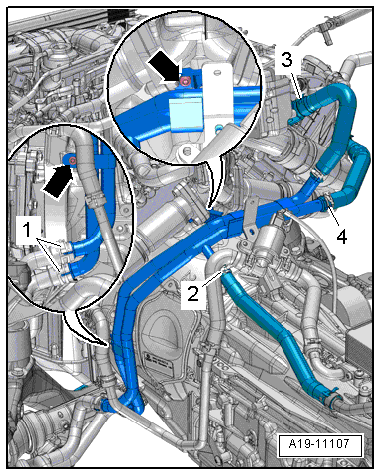

Fig 1: Identifying Left Coolant Pipe Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the pre-catalytic converter. Refer to PRE-CATALYTIC CONVERTER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

NOTE:

Ignore items -1 and 2-.

-- Remove bolt -1- and loosen bolt -3-.

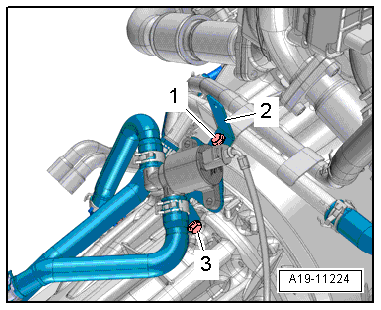

Fig 2: Installing Mount On Cooling Oil Valve -N471-

Courtesy of AUDI OF AMERICA, LLC

-- Press the mount -2- and the Cooling Oil Valve -N471- toward the rear.

-- Place the Shop Crane - Drip TrayVAS6208 under transmission.

Fig 3: Identifying Left Upper Coolant Pipes Removal

Courtesy of AUDI OF AMERICA, LLC

-- Open the clamps -1, 2 and 4- and the clips -3- to remove the coolant hoses.

-- Remove the bolts -arrows- and then remove the coolant pipes on the left side of the transmission.
