Left Lower Coolant Pipe On Engine, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Cover -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the engine cover off the four retaining pins one after the other -arrows-.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Turn the tensioning element clockwise using the Torx Socket - T60T40087 -arrow- to release the tension on the ribbed belt.

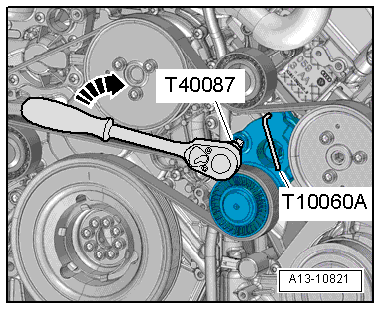

Fig 2: Moving Tensioner Clockwise -Arrow- Using T40087 To Release Tension On Ribbed Belt And To Remove Ribbed Belt Using T10060A

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt from the Air Conditioning (A/C) compressor ribbed belt pulley and stop the tensioner with the Locking PinT10060A.

-- Remove the A/C Compressor. Refer COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

-- Remove the power steering pump from the bracket, and with the hydraulic line/hose still connected, tie it off to the side. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING .

-- Remove bolts -1, 2 and 3- and remove the accessory assembly bracket.

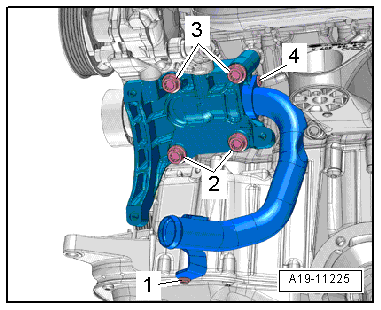

Fig 3: Removing Coolant Pipe And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4- and then remove the lower left coolant pipe.

NOTE:

Ignore the -arrows-.
