Left Coolant Pipe On Engine, Removing And Installing: Removing

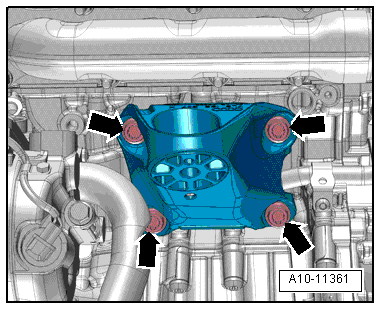

Fig 1: Identifying Bolts -Arrows- And Connector Bracket From Left Engine Mount Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the left engine mount. Refer to ENGINE MOUNT AND ENGINE SUPPORT, REMOVING AND INSTALLING .

-- If equipped, remove the nuts -arrows- and the connector bracket from the left engine support.

-- Remove the bolts -arrows- and the left engine support.

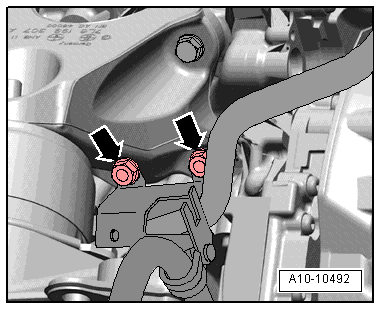

Fig 2: Removing Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1-.

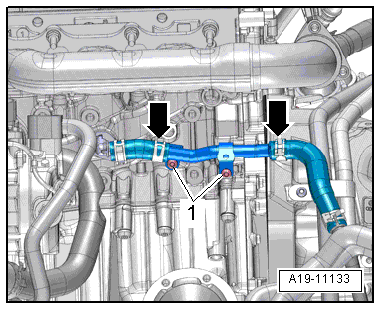

Fig 3: Removing Coolant Hoses From Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -arrows- to remove the coolant hoses from the coolant pipe.

-- Remove the left coolant pipe.
