Engine Temperature Control Sensor -G694-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying MAX-Marking For Coolant

Courtesy of AUDI OF AMERICA, LLC

The engine is cold.

-- Quickly open the coolant reservoir cap and release any remaining pressure in the cooling system and then close it again.

-- Carefully pull the engine cover off the four retaining pins one after the other in direction of -arrows-.

Fig 2: Identifying Engine Cover -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

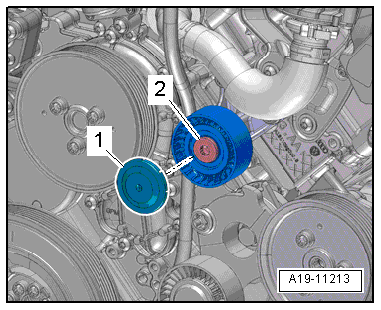

Fig 3: Idler Roller, Cover -1-, & Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -1-.

-- Remove the bolt -2- and remove the idler roller.

-- Disconnect the connector -1-.

Fig 4: Component Location Engine Temperature Control Sensor -G694-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Use a cloth to catch any leaking coolant.

-- Remove the bolt -2- and remove the Engine Temperature Control Sensor -G694-.
