Drive Plate, Removing And Installing: Removing
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- The transmission is removed.

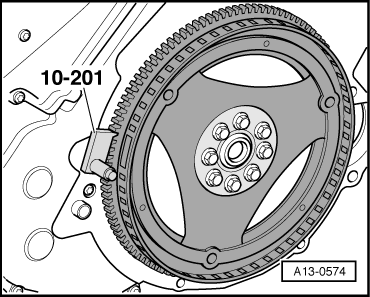

-- Insert the Counterhold - Flywheel10-201 to loosen the bolts.
CAUTION:
The outer surface of the bearing flange at the drive plate could be damaged.
- Use a multipoint socket wrench with a shaft at least 40 mm long extension to loosen and tighten the drive plate bolts.
-- Remove the bolts, drive plate and sensor wheel.
