Overview - Radiator
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

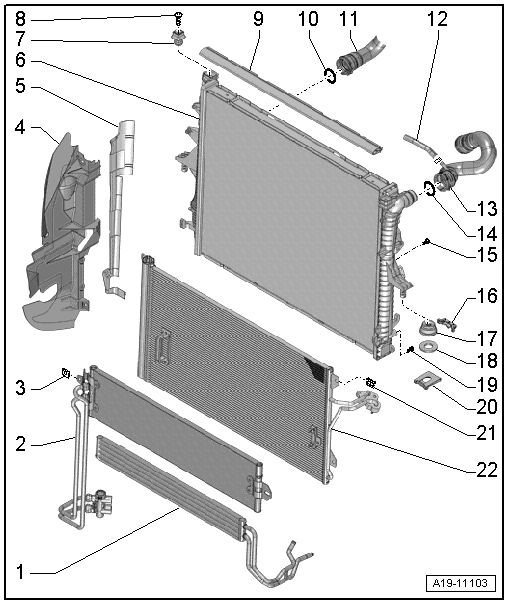

- Hydraulic Fluid Cooler
- For power steering
- ATF Cooler
- For the automatic transmission
- Clamp
- Make sure it is secure
- Air Guide
- Air Guide
- Radiator
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Change the coolant after replacing
- Grommet
- Bolt
- 5.5 Nm
- Sealing Strip
- O-Ring
- Replace
- Coolant Hose
- Illustration does not correspond to version in vehicle.
- Connect to the radiator. Refer to Fig 2
- Coolant Hose
- Coolant Hose
- Connect to the radiator. Refer to Fig 2
- O-Ring
- Replace
- Bolt
- 8 Nm
- Retainer
- For the radiator
- Rubber Buffer
- Washer
- Bolt
- 8 Nm
- Clamp
- Make sure it is secure
- Clamp
- Make sure it is secure
- Condenser
- For air conditioning system
-- Remove the old O-ring -2- in the coolant hose -3-.
-- Coat the new O-ring with coolant and install it in the coolant hose.
-- Press the coolant hose onto the connection -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
