Selector Lever, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear noise insulation -2-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the selector lever cable heat shield bolts -1, 3 and 4-.

Fig 2: Identifying Selector Lever Cable Heat Shield - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Move the heat shield to the side.

-- Remove ball head -1- on the selector lever cable from the selector shaft lever using the Pry Lever80-200.

Fig 3: Identifying Selector Lever Cable Ball Head -1- And Cable Mounting Bracket Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

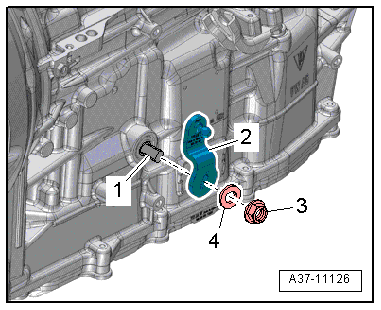

-- Remove the nut -3- hand remove the washer -4- and selector lever -2- from the selector shaft -1-.

Fig 4: Identifying Selector Shaft -1, Selector Lever -2, Nut -3 And Washer -4-

Courtesy of AUDI OF AMERICA, LLC
