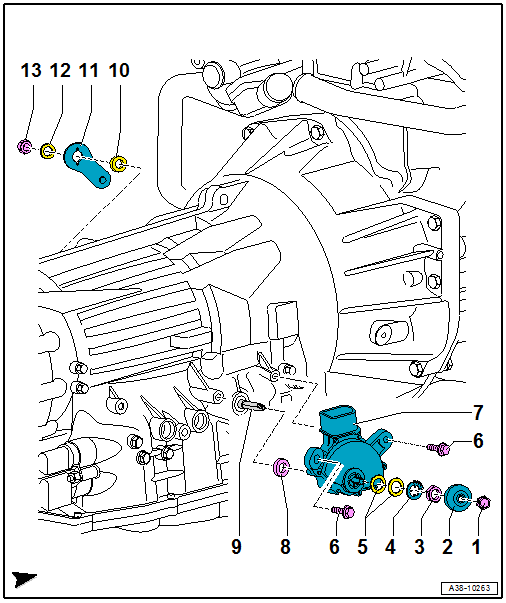

Selector Lever And MULTIFUNCTION Transmission Range Switch -F125-: Overview
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 12 Nm
- Cover
- Nut
- 7 Nm
- Lock Washer
- Replace if damaged
- Seals
- Bolt
- 6 Nm
- Multifunction Transmission Range Switch -F125-
- Removing, installing and adjusting. Refer to Multifunction Transmission Range Switch -F125-, REMOVING, INSTALLING AND ADJUSTING .
- Right Selector Shaft Seal
- Removing, installing. Refer to SELECTOR SHAFT SEAL, REMOVING AND INSTALLING, LEFT .
- Selector Shaft
- Left Selector Shaft Seal
- Removing, installing. Refer to SELECTOR SHAFT SEAL, REMOVING AND INSTALLING, LEFT .
- Selector Lever
- The illustration does not represent the version in the vehicle.
- Removing, installing. Refer to SELECTOR LEVER, REMOVING AND INSTALLING .
- Washer
- Nut
- 12 Nm
