Installing and Adjusting

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Tightening Specifications

Refer to SELECTOR LEVER AND Multifunction Transmission Range Switch -F125- .
Refer to Figure.

-- Move the selector lever into "N".

-- Remove the selector lever cable heat shield bolts -1, 3 and 4-.

Fig 1: Identifying Selector Lever Cable Heat Shield - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Move the heat shield to the side.

-- Remove ball head -1- on the selector lever cable from the selector shaft lever using the Pry Lever80-200.

Fig 2: Identifying Selector Lever Cable Ball Head -1- And Cable Mounting Bracket Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Move the selector lever on the transmission into "N".

-- Install the Multifunction Transmission Range Switch -F125- onto the selector shaft.

-- Install the bolts for the Multifunction Transmission Range Switch -F125- all the way by hand.

-- Place the Gauge - Multi Function SwitchT10173 on the selector shaft.

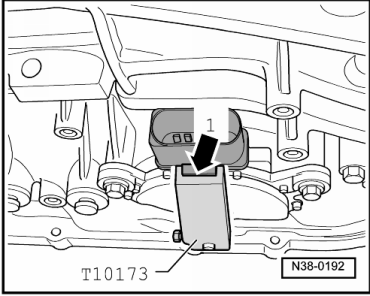

Fig 3: Identifying Gauge T10173 And Selector Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Turn the multifunction transmission range switch until the tab on the connector -arrow 1- locks into the groove on the Gauge - Multi Function SwitchT10173.

-- Install the screw on the side of the Gauge - Multi Function SwitchT10173 hand-tight. This secures the Gauge - Multi Function SwitchT10173 to the selector shaft.

-- Tighten the bolts -arrows B- for the Multifunction Transmission Range Switch -F125- in this position.

Fig 4: Removing Guage - Multi Function Switch T10173

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Gauge - Multi Function SwitchT10173.

-- Connect the connector to the Multifunction Transmission Range Switch -F125-.

NOTE:

The illustration shows the installation position with the transmission removed.

-- Slide on both seals -1-.

-- Slide on the lock washer -2-.

-- Tighten the nut -3-.

-- Bend the hook on the lock washer -2- carefully toward the nut using a screwdriver.

NOTE:

If one hook breaks, then the lock washer must be replaced.

-- Push the cover -4- onto the selector shaft.

-- Install the cap nut -5-.

Fig 5: Identifying Selector Lever Cable Ball Head -1- And Cable Mounting Bracket Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the transmission selector lever.

Do not bend the transmission selector lever when installing the selector lever cable. Control it if necessary.

-- Press the selector lever cable -1- carefully onto the selector lever.

-- Turn on the ignition.

-- Connect the Vehicle Diagnostic Tester and select the following menu item:

On-Board Diagnostics (OBD)
02 - Transmission Electronics
Measured Values
Driving Gear

-- Move the selector lever slowly from "P" through "R, N, D and S".

The engage gear on the selector lever must light up in the Selector Lever Transmission Range Position Display Unit -Y26-.
The Transmission Range Display -Y6- in the instrument cluster, on the Selector Lever Transmission Range Position Display Unit -Y26- and the display on the Vehicle Diagnostic Tester must match the selector lever position.

If the conditions are not met:

-- Repeat adjusting the Multifunction Transmission Range Switch -F125- and adjust the selector lever cable, if necessary. Refer to SELECTOR LEVER CABLE, ADJUSTING .

If the conditions are met:

Install in reverse order of removal. Note the following:

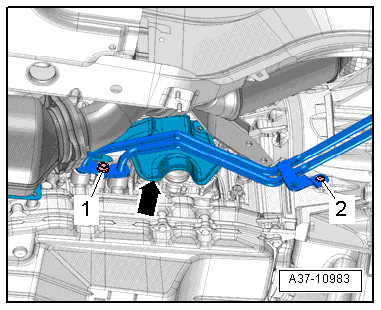

Fig 6: Identifying ATF Pipes Bolts -1 And 2-, Bend Heat Shield -Arrow- Slightly Upward

Courtesy of AUDI OF AMERICA, LLC

-- Check selector lever cable adjustment. Refer to SELECTOR LEVER CABLE, ADJUSTING .

-- Install the ATF pipes. Refer to ATF CIRCUIT .

-- ATF level, checking and filling. Refer to ATF LEVEL, CHECKING AND FILLING .

-- Check the ATF pipe connections for leaks while checking the ATF level.
