Transmission, Transporting
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine Sling2024A
- Engine ShackleT10059
- Shop CraneVAS6100
Procedure

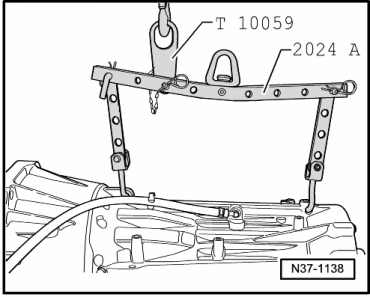

-- Secure the Engine Sling2024A to the transmission using a Engine ShackleT10059 as illustrated.
WARNING:
Mounting hooks and connecting pins on engine sling must be secured with plug connectors.
-- Attach the Engine ShackleT10059 to the Shop CraneVAS6100.
