Special Tools

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

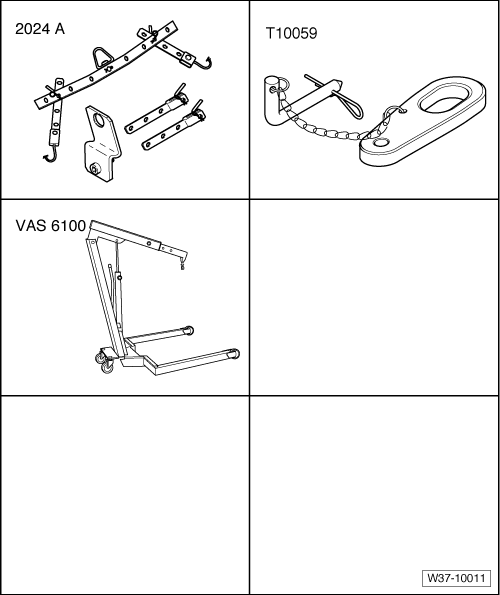

Fig 1: Identifying Special Tools -- Transmission, Transporting

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine Sling2024A
Engine ShackleT10059
Shop CraneVAS6100

Fig 2: Special Tools And Workshop Equipment Required

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine Support Bridge10-222A
Engine Support - Bracket w/Spindle and hook10-222A/10
Engine/Gearbox Support Shackle (2 pc.)10-222A/12
Engine Support Bridge - Engine Support 1910-222A/19
Engine Support Bridge - Sub-frame Adapter10-222A/22
Bracket - Multiple Use30-211A

Fig 3: Special Tools And Workshop Equipment Required

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Pry Lever - Rmv Outside Mirror80-200
Lifting Tackle3033
Engine/Gearbox JackVAG1383A
Shop CraneVAS6100
Engine Bung SetVAS6122
Crankshaft SocketT40058

Special tools and workshop equipment required

Puller - Unit InjectorT10055

Fig 4: Identifying Puller T10055
Courtesy of AUDI OF AMERICA, LLC
Seal Installer - Output Shaft Oil SealT10180

Fig 5: Identifying Press Tool For Shaft Seal T10180
Courtesy of AUDI OF AMERICA, LLC
Seal Installer - Output Shaft Oil SealT10186

Fig 6: Identifying Sleeve For Shaft Seal T10186
Courtesy of AUDI OF AMERICA, LLC
Socket And KeyT40031

Fig 7: Identifying Socket And Key T40031
Courtesy of AUDI OF AMERICA, LLC
Engine Support Basic SetT40091

Fig 8: Engine Support Basic Set T40091
Courtesy of AUDI OF AMERICA, LLC
Engine Support Supplement SetT40093

Fig 9: Engine Support Supplement Set T40093
Courtesy of AUDI OF AMERICA, LLC
Gearbox SupportT40173

Fig 10: Gearbox Support T140173
Courtesy of AUDI OF AMERICA, LLC
Hose Clip PliersVAG1275A

Fig 11: Hose Clamp Pliers VAG 1275
Courtesy of AUDI OF AMERICA, LLC
Used Oil Collection And Extraction UnitSMN372500
Depth GaugeVAS6082

Fig 12: Identifying Depth Gauge VAS 6082
Courtesy of AUDI OF AMERICA, LLC
Oil FillerVAS6262A

Fig 13: Adapter For Oil Filling VAS 6262 A
Courtesy of AUDI OF AMERICA, LLC
If necessary, Oil Filler - Adapter 6VAS6262/6
Oil Filler - Adapter 2VAS6262/2

Fig 14: Identifying Special Tool -- VAS 6262/2
Courtesy of AUDI OF AMERICA, LLC
Hose Clip PliersVAS6362

Fig 15: Clamp Pliers VAS 6362
Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 40mm3093

Fig 16: Hose Clamps 3093
Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 25mm3094

Fig 17: 3094 Hose Clamps
Courtesy of AUDI OF AMERICA, LLC
Not illustrated:
Brake Line Tool Kit - Pipe CutterVAS6056/2
