Transmission Park Selector Switch -F305-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Shifter mechanism function unit, removing. Refer to SHIFT MECHANISM FUNCTION UNIT, REMOVING AND INSTALLING .
-- Remove the shift gate. Refer to SHIFT GATE, REMOVING AND INSTALLING .

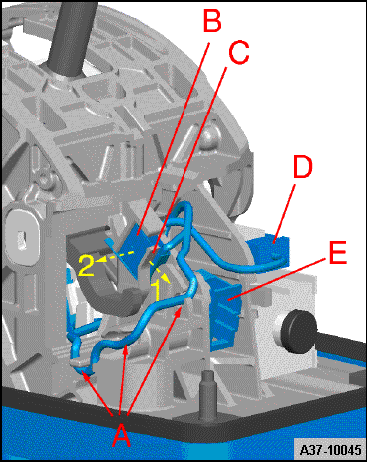

-- Pry off the retaining pins -A- in direction of -arrow- with a screwdriver.
-- Remove the first micro-switch -B-.
-- Disengage the wiring from the tab -arrow C- and remove the micro-switch from the selector mechanism.
-- Release the connector -D- and disconnect it from the Shift Lock Solenoid -N110-.
-- Release the connector -E- and disconnect is upward.
-- Press the tab -C- in direction of -arrow 1-.
-- Remove the second micro-switch -B- in direction of -arrow 2-.
-- Disengage the wire on the selector mechanism -arrows A-.
