Shift Mechanism Function Unit, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

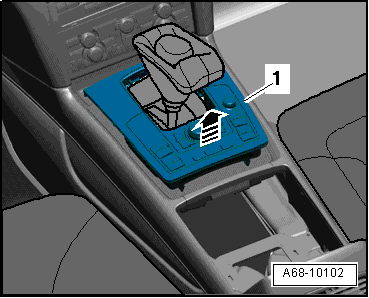

Fig 1: Pressing Up Installation Frame -1- For Multimedia Control Head -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the handle from the selector lever. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

-- Remove the installation frame with the Multimedia System Control Head -E380- -1-. Refer to Multimedia System Control Head -E380- INSTALLATION FRAME, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

Fig 2: Connect Connector -1- To Selector Lever Sensor System Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation -2-.

-- Remove the front ashtray or front storage compartment. Refer to FRONT ASHTRAY/FRONT COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and -1- and the center console bracket.

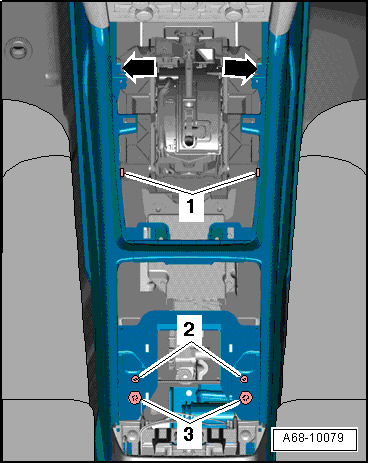

Fig 3: Identifying Screws -1 To 3- And Front Screws -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

Fig 4: Electrical Connector -1- And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the four bolts -arrows-.

Fig 5: Bolts -Arrows-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The center console bracket is not shown in the illustration.

-- Tip the gearshift mechanism function unit and remove the center console bracket.

-- Press and hold the parking lock button -C-.

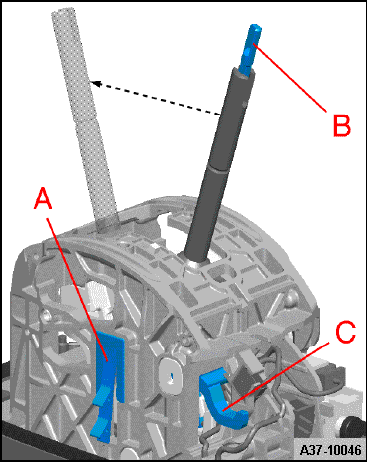

Fig 6: Identifying Selector Rod And Shift Selector Lever, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Pull the selector rod -B- up and move the selector lever in direction of -arrow- into "S".

NOTE:

Ignore -A-.

Selector mechanism is shown from the front in the illustration.

-- Lift the selector mechanism function unit.

NOTE:

Do not bend or kink the selector lever cable.

-- Remove the clamping screw -1- through the top opening in the selector mechanism -arrow- using Socket And KeyT40031.

Fig 7: Identifying Set Screw -1, Opening In Selector Mechanism -Arrow-, Socket, And Key T40031

Courtesy of AUDI OF AMERICA, LLC

-- Remove the locking plate -2- from the selector lever cable -1-.

Fig 8: Identifying Lock Washer & Selector Lever Cable

Courtesy of AUDI OF AMERICA, LLC

-- Remove selector mechanism function unit upward.
