Shift Lock Solenoid -N110-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Emergency Release Lever And Guide

Courtesy of AUDI OF AMERICA, LLC

Selector lever in "S".

-- Unclip the guide for the emergency release lever in direction of -arrow-.

-- Remove the emergency release lever -arrow- upward.

Fig 2: Identifying Manual Release Lever

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The operating lever -1- for the Shift Lock Solenoid -N110- moves into its installed position when the emergency release lever is pulled up.

Fig 3: Placing Shift Lock Solenoid N110 Into Guide At An Angle From Above

Courtesy of AUDI OF AMERICA, LLC

-- At the same time, position the Shift Lock Solenoid -N110- into the guide at an angle.

-- Push the Shift Lock Solenoid -N110- into the guide until it clicks.

The ball head -2- on the Shift Lock Solenoid -N110- must fit into the operating lever on the selector mechanism.

-- Connector the connector -1-.

Fig 4: Identifying Shift Lock Solenoid N110 Electrical Connector And Releasing Retainer And Pulling Out Shift Lock Solenoid N110 From Front

Courtesy of AUDI OF AMERICA, LLC

Check the function of the Shift Lock Solenoid -N110- before continuing the assembly.

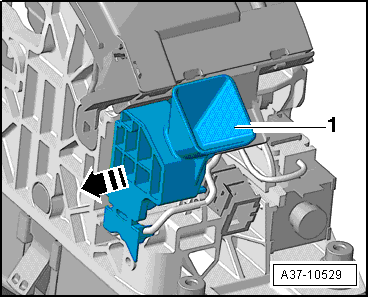

Fig 5: Connect Connector -1- To Selector Lever Sensor System Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Connector the connector -1-.

Fig 6: Electrical Connector -1- And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Before completing the assembling, check the function of the Shift Lock Solenoid -N110- with the selector lever in "P" and "N". Refer to GEARSHIFT MECHANISM, CHECKING .

Further installation is done in reverse order of removal, similar to installation of selector mechanism function unit. Refer to SHIFT MECHANISM FUNCTION UNIT, REMOVING AND INSTALLING .
