Shift Gate, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

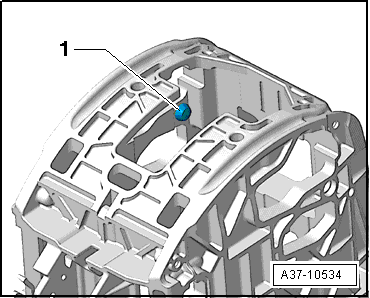

Fig 1: Check Stop Buffer -1- For Proper Seating.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

NOTE:

Coat the bearings and the sliding surfaces with Polycarbamide GreaseG 052 142 A2.

-- Make sure the stop buffer fits correctly -1-.

NOTE:

The stop buffer -1- is located on the opposite side on a RHD vehicle.

-- Guide the shift gate -1- from underneath.

Fig 2: Identifying Part Of Shift Gate -1-

Courtesy of AUDI OF AMERICA, LLC

Shift gate selector lever in "S" (as illustrated).

-- Install the micro-switch -B- into the shift gate and secure it with the retaining pin -A-.

NOTE:

The micro-switch must be flush on all sides.

-- Engage the wiring into the tab -arrow C-.

-- Install both axial bearings -2- on the shift gate -1-.

-- Place both shift bearings -3- on the shift gate.

-- Slide the shift gate into the function unit housing. If necessary, push the emergency release lever -arrow- down to make it possible to install the shift gate.

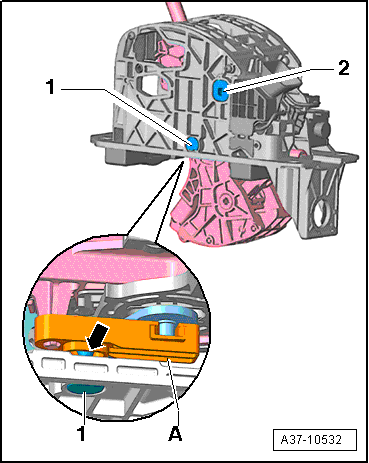

Fig 3: Identifying Manual Release Lever

Courtesy of AUDI OF AMERICA, LLC

-- Push the lower bearings -1- in on both sides.

Fig 4: Identifying Lower Bearings

Courtesy of AUDI OF AMERICA, LLC

Bearings -1- must engage in the shift bearing bushings -arrow- -A-.

-- Press the new locking plate -2- onto rear axial bearing.

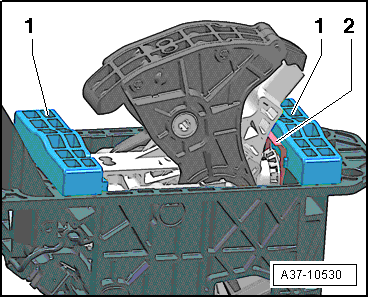

Fig 5: Bearing Shells And Retainer Plate

Courtesy of AUDI OF AMERICA, LLC

Installed position: the angled end of securing plate faces toward shift gate.

-- Install both bearing shells -1-.

-- Secure the electric wire -arrows A- to the selector mechanism as illustrated.

Fig 6: Identifying Microswitch Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the micro-switch is installed correctly and securely -B-.

NOTE:

The ignition key removal lock will not function correctly if the micro-switch is not inserted correctly or properly secured.

-- Install the guide -1- for the emergency release lever opposite in direction of -arrow-.

Fig 7: Emergency Release Lever And Guide

Courtesy of AUDI OF AMERICA, LLC

-- Shifter mechanism function unit, installing. Refer to SHIFT MECHANISM FUNCTION UNIT, REMOVING AND INSTALLING .
