Selector Mechanism Function Unit Lower Section, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pushing Boot Forward And Out From Shift Unit

Courtesy of AUDI OF AMERICA, LLC

-- Shifter mechanism function unit, removing. Refer to SHIFT MECHANISM FUNCTION UNIT, REMOVING AND INSTALLING .

-- Push the rubber grommet -arrow- forward and out of the selector mechanism function unit lower section.

-- Remove the hooks -1 and 2-.

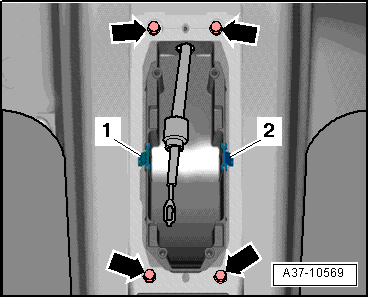

Fig 2: Identifying Hooks -1 To 2- And Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Pull the lower section -1- of the selector mechanism function unit slightly toward the rear and remove the bolts -arrows- from the centering bracket -2-.

Fig 3: Identifying Bolts -Arrows-, Lower Section Of Selector Mechanism Function Unit -1-, And Centering Bracket -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the selector mechanism function unit lower section.

-- Remove center bracket upward. It may not be installed again.

NOTE:

The center bracket is only needed for factory production.
