Selector Mechanism Function Unit Lower Section, Removing And Installing: Installing
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:
- Tightening specifications. Refer to SELECTOR MECHANISM .
-- Make sure the seal fits correctly on the selector mechanism function unit lower section.

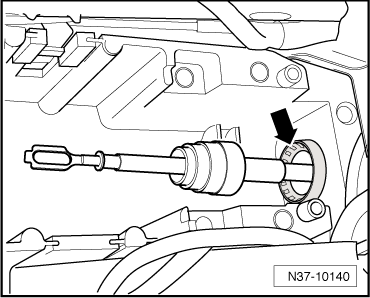

-- Install the rubber grommet -arrow- on the selector lever cable in the selector mechanism function unit lower section.
-- Shifter mechanism function unit, installing. Refer to SHIFT MECHANISM FUNCTION UNIT, REMOVING AND INSTALLING .
