Selector Mechanism Function Unit: Overview

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Coat the bearings and the sliding surfaces with Polycarbamide GreaseG 052 142 A2.

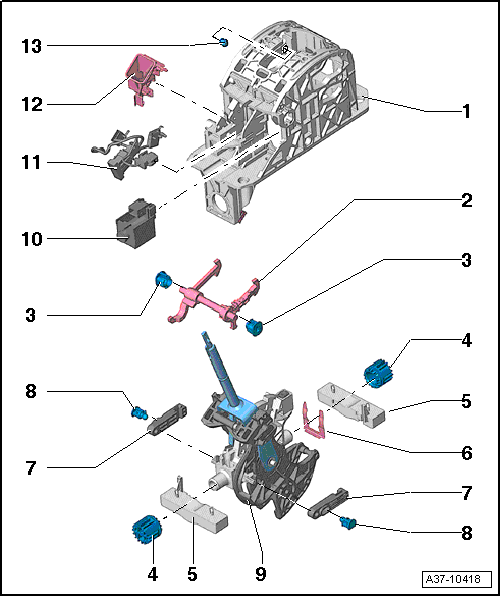

Fig 1: Identifying Selector Mechanism Function Unit Overview

Courtesy of AUDI OF AMERICA, LLC

Function Unit Housing
Selector Lever Position Locking Lever "P"
- Removing and installing. Refer to SELECTOR LEVER "P" POSITION LOCKING LEVER, REMOVING AND INSTALLING .
Bushings
Axial Bearing
- For the shift gate.
Bearing Shell
- For the shift gate.
- Clipped to the function unit housing.
Locking Plate
- For the axial bearing.
- Replace
Shift Bearing
- For the shift gate.
Bearings
- For the shift bearing.
Shift Gate
- Removing and installing. Refer to SHIFT GATE, REMOVING AND INSTALLING .
Shift Lock Solenoid -N110-
- Removing and installing. Refer to Shift Lock Solenoid -N110-, REMOVING AND INSTALLING .
Transmission Park Selector Switch -F305-
- Removing and installing. Refer to Transmission Park Selector Switch -F305-, REMOVING AND INSTALLING .
Guide
- For the emergency release lever.
- Is clipped inside the function unit housing.
Stop Buffer
