Tightening Specifications

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Refer to SELECTOR LEVER CABLE .
Refer to Figure.

NOTE:

Secure all hose connections with hose clamps of the same type as those equipped by the factory.

-- Secure selector lever cable to cable that was guided in during removal.

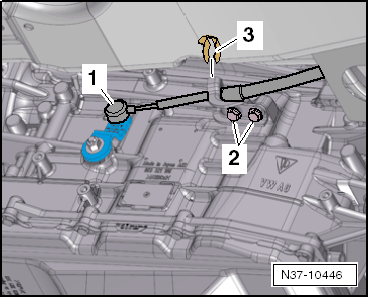

-- Guide the selector lever cable and rubber grommet -2- into the selector mechanism function unit -1-.

Fig 1: Identifying Selector Lever Cable, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the transmission selector lever.

Do not bend the transmission selector lever when installing the selector lever cable. Control it if necessary.

-- Press the selector lever cable -1- carefully onto the selector lever.

-- Secure the grommet selector lever cable grommet to the cable bracket with a new clip -3-.

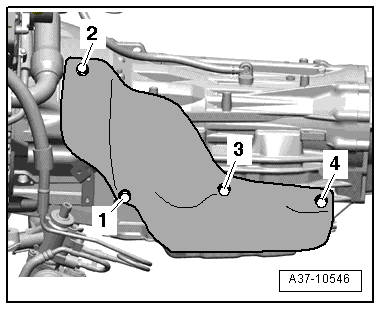

-- Install the selector lever cable heat shield bolts -1, 3 and 4-, if equipped.

Fig 2: Identifying Selector Lever Cable Heat Shield - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

Vehicles with a 3.0L TDI Engine

Fig 3: Disconnect Differential Pressure Sensor Hoses -Arrows

Courtesy of AUDI OF AMERICA, LLC

-- Attach the hoses -arrows- for the Differential Pressure Sensor -G505- to the pressure lines on the particulate filter according to the color markings made earlier.

All Vehicles

Fig 4: Pushing Boot Forward And Out From Shift Unit

Courtesy of AUDI OF AMERICA, LLC

-- Install the rubber grommet -arrow- on the selector lever cable in the selector mechanism function unit lower section.

-- Shifter mechanism function unit, installing. Refer to SHIFT MECHANISM FUNCTION UNIT, REMOVING AND INSTALLING .

-- Adjust selector lever cable. Refer to SELECTOR LEVER CABLE, ADJUSTING

-- Install the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
