Overview - Selector Lever Cable

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

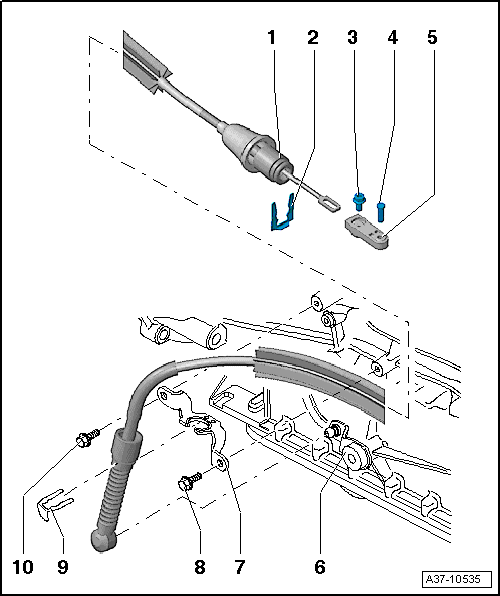

Fig 1: Identifying Selector Lever Cable Overview

Courtesy of AUDI OF AMERICA, LLC

Selector Lever Cable
- Do not bend.
- Removing and installing. Refer to SELECTOR LEVER CABLE, REMOVING AND INSTALLING .
- The selector lever cable must be replaced if the rubber grommet is damaged.
- Ball socket and ball head must be free of oil and grease.
- Make sure the rubber grommet for the selector lever cable is installed correctly in the selector mechanism.
- Adjusting, Refer to SELECTOR LEVER CABLE, ADJUSTING .
Clip
- For the selector lever cable on the selector mechanism function unit.
- Replace
Bolt
- 13 Nm
- For adjusting the selector lever cable.
Bolt
- For selector lever cable.
- The plastic retaining spring on adjustment slide must lock the pins so that they cannot fall out.
Adjustment Slide
Selector Lever
- Ball socket and ball head must be free of oil and grease.
- Removing and installing. Refer to SELECTOR LEVER, REMOVING AND INSTALLING .
Cable Mounting Bracket
- For selector lever cable.
Bolt
- M6: 9 Nm
- M8: 22 Nm
- For attaching the cable bracket to the transmission.
  Size depends on the version.
Clip
- For attaching the selector lever cable to the cable bracket.
- Always replace.
Bolt
- M6: 9 Nm
- M8: 22 Nm
- For attaching the cable bracket to the transmission.
  Size depends on the version.

Fig 2: Identifying Selector Lever Cable Heat Shield - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1 through 4- to 9 Nm.
