Transmission Control Module -J217-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Perform OBD and Guided Fault Finding before replacing or removing the control module.

-- Get the control module identification and coding from the previous Transmission Control Module -J217-.

-- Turn off the ignition and remove the key.

-- Remove the front passenger seat. Refer to Seat Frames .

-- Open the drawer -1- under the front passenger seat.

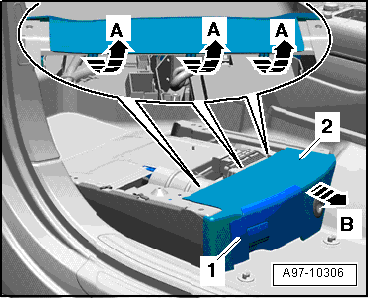

Fig 1: Release Retaining Clamps On Back Side Of Cover -2- In -Direction Of Arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the clips on the back of the cover -2- in direction of -arrow A-.

-- Remove the cover from the front passenger seat in direction of -arrow B-.

-- Remove the bolt -4-.

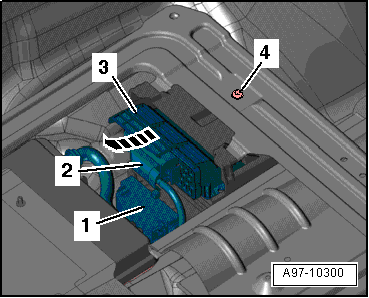

Fig 2: Identifying Installation Of Mount -3- And Control Modules Into Brackets

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1- and -2-.

-- Remove the mount -3- with the control modules.

CAUTION:

Risk of damaging transmission components.

You must first discharge yourself of any static electricity by touching a grounded metal object (bare handed) before touching or removing the Transmission Control Module -J217-.
Never touch the connectors in the Transmission Control Module -J217-. Static discharging can damage the Transmission Control Module -J217-.

-- To discharge static, touch vehicle ground with hand (without glove).

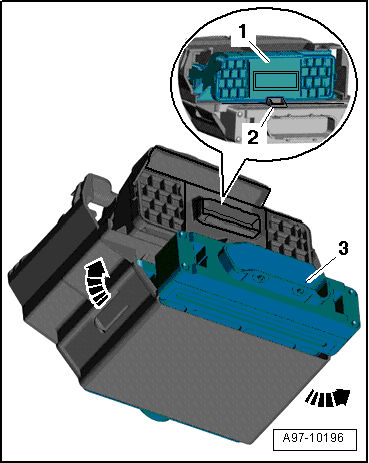

-- Open the clips in direction of -arrows- and remove the Transmission Control Module -J217- -3- as far as the stop. If necessary, release clips again and remove control module from mount.
