Auxiliary Hydraulic Pump Control Module -J922-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

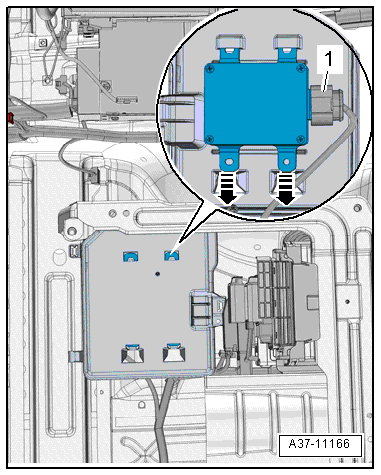

Fig 1: Release Tabs And Open Cover On Auxiliary Hydraulic Pump Control Module Housing

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the front passenger seat. Refer to Seat Frames .

-- Release the tabs and open the cover on the Auxiliary Hydraulic Pump Control Module -J922- housing.

-- Release the tabs in direction of -arrows-, remove the Auxiliary Hydraulic Pump Control Module -J922- and disconnect the connector.
