ATF Pipes, ATF Cooler And ATF Pre-Heater: Notes
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
ATF pipe leaks

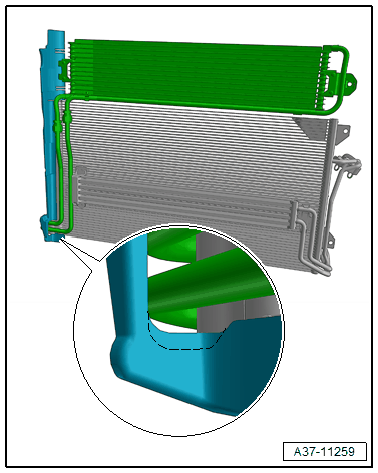

- To avoid contact between ATF pipes and the sealing section, clip the sealing section approximately 5 mm as shown.
- Remove debris in this area.
- Refer to the Technical Service Bulletin for this procedure.
NOTE:
Courtesy of AUDI OF AMERICA, LLC
Pronged ring on the ATF pipe.

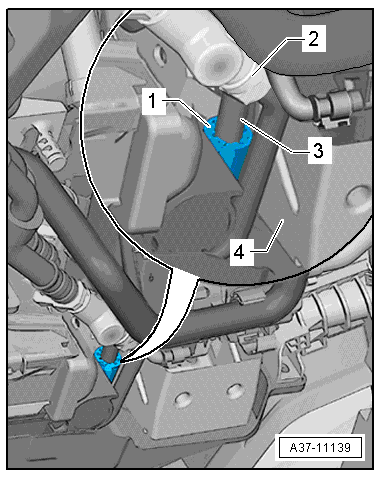

Fig 2: Identifying Pronged Ring -1-, Temperature Valve -2-, Upper ATF Pipe -3-, And Longitudinal Member -4-
The upper ATF pipe -3- has a pronged ring -1- to protect it from touching the longitudinal member -4-.
If the pronged ring is not there and the ATF pipe is damaged, then the ATF pipe must be replaced.
A missing pronged ring must be exchanged.
