ATF PREHEATER, Removing And Installing: Installing
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:
- Tightening specifications. Refer to ATF PIPES, ATF COOLER AND ATF PRE-HEATER .
Clean the ATF cooler and the ATF pipes if the ATF is dirty as well as before installing a replacement transmission. Refer to ATF PIPES AND ATF COOLER, CLEANING .

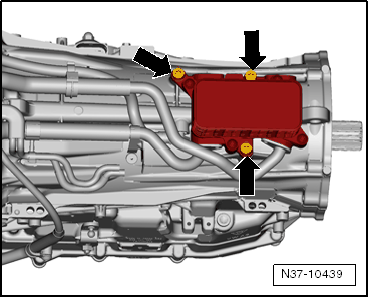

-- Bolt the ATF pre-heater -arrows- to the transmission, install the coolant pipes on the transmission and connect with the coolant hoses.
-- Remove the plug and insert the ATF pipes all the way into the transmission.
-- Install the ATF pipes. Refer to ATF PIPES AND ATF COOLER, REMOVING AND INSTALLING .
Install in reverse order of removal.
Check the ATF level and fill if necessary. Refer to ATF LEVEL INSIDE TRANSMISSION .
-- Fill with coolant. Refer to COOLANT, DRAINING AND FILLING .
