Oil Pump With Vacuum Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

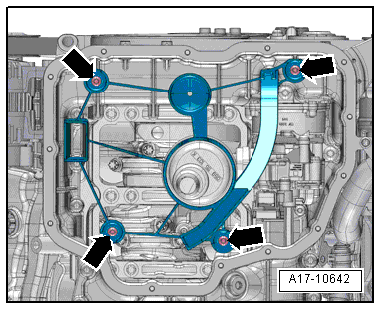

Fig 1: Oil Pan Bolts Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the oil baffle.

-- Remove the bolts -1, 2 and 3-.

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Press the input shaft back against the spring force and remove the oil pump.

NOTE:

The oil pump input shaft remains installed.
