Engine Speed Sensor -G28-: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front/Rear Noise Insulation
GWWA10-10441Courtesy of AUDI OF AMERICA, LLC

-- Loosen the fasteners and remove the rear noise insulation -2-.

-- Disconnect the connector -2-.

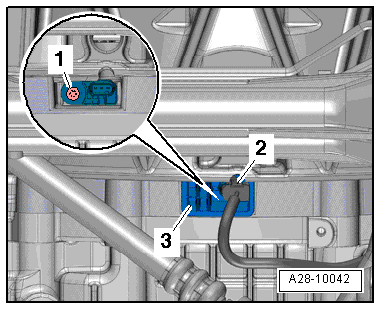

Fig 2: Identifying Engine Speed Sensor
GWWA28-10042Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and the Engine Speed Sensor -G28-.
