Secondary Air Injection Right Combination Valve, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

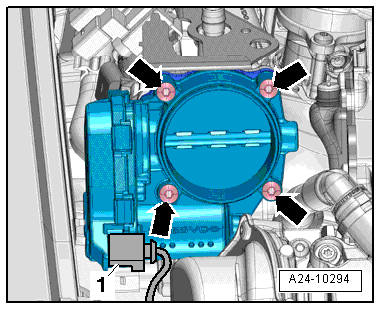

Fig 1: Locating Throttle Valve Control Module & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right front wheel. Refer to WHEEL, CHANGING AND MOUNTING .

-- Remove the Throttle Valve Control Module -J338-. Refer to Throttle Valve Control Module -J338-, REMOVING AND INSTALLING .

NOTE:

Ignore item -1-.

-- Remove the connectors -2 and 3- from the bracket and move them to the side.

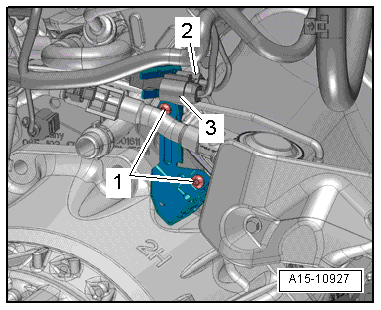

Fig 2: Connector & Knock Sensor (KS)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

-- Disconnect the brake booster vacuum line -2-, free it up and lay it on the right side of the vehicle.

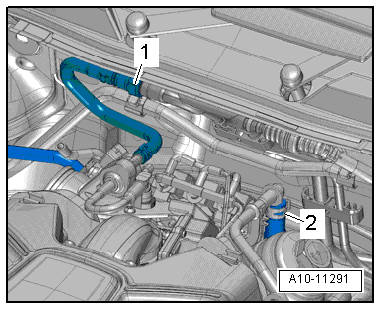

Fig 3: Identifying Brake Booster Vacuum Line -2- And EVAP Canister Hose -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the heat shield -1-.

Fig 4: Identifying Heat Shield Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum line -2- from the secondary air injection combination valve.

-- Remove the bolts -3-, remove the right secondary air combination valve and remove the bolts -1- for the secondary air hose.

Fig 5: Combination Valve Bolts & AIR Pipe Bolts

Courtesy of AUDI OF AMERICA, LLC
