Secondary Air Injection Left Combination Valve, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing, bring all cable ties back to same positions.

Remove the left front wheel. .

NOTE:

Ignore item -3-.

-- Remove the connectors -1 and 2- from the bracket at the back of the left cylinder head and move them to the side.

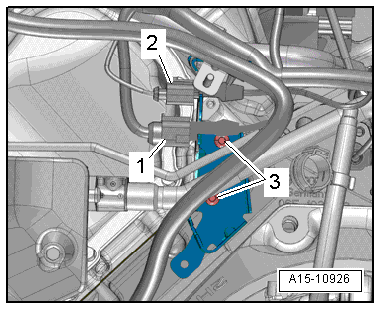

Fig 1: Electrical Connectors On Left Rear Of Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the heat shield -1-.

Fig 2: Identifying Heat Shield Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3- for the secondary air hose.

-- Remove the vacuum line -2- from the secondary air injection combination valve.

-- Remove the bolts -1- and remove Secondary Air Injection (AIR) combi-valve.

Fig 3: Identifying Vacuum Line -2- And Secondary Air Injection (Air) Combination Valve

Courtesy of AUDI OF AMERICA, LLC
