Right Catalytic Converter, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing, bring all cable ties back to same positions.

-- Loosen the hose clamps -arrows- and lay the air guide pipe aside with the vacuum hose -1- connected.

Fig 1: Identifying Air Guide Pipe And Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Remove the connector -1- for the Oxygen Sensor after Three Way Catalytic Converter -G130- from the bracket on the right suspension strut tower, then disconnect it and free up the heated oxygen sensor.

Fig 2: Identifying Electrical Connectors

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -2, 3 and 4-.

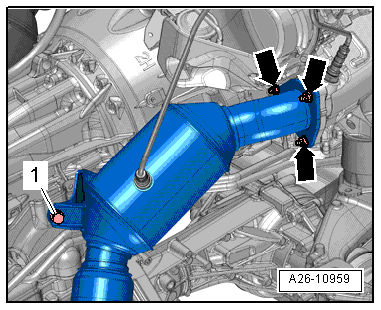

-- Remove the bolt -1-, the nuts -arrows- and the catalytic converter.

Fig 3: Identifying Right Catalytic Converter Bolt And Nuts

Courtesy of AUDI OF AMERICA, LLC
