Tightening Specifications

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Refer to OVERVIEW - MUFFLER AND CATALYTIC CONVERTER .

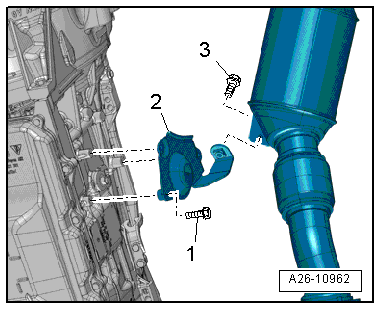

Refer to Figure.

NOTE:

Replace the seals and self-locking nuts.

The hose connections as well as the air guide pipes and hoses must be free of oil and grease before installing.

Secure all hose connections with hose clamps of the same type as those equipped by the factory.

To mount the air guide hoses on their connectors securely, spray the bolts on the used clamps with rust remover before installing.

-- Install the left front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .
