Left Exhaust Manifold, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When installing, bring all cable ties back to same positions.

-- Remove the left catalytic converter. Refer to LEFT CATALYTIC CONVERTER, REMOVING AND INSTALLING .

-- Remove the front noise insulation -1-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

Fig 1: Locating Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Heated Oxygen Sensor 2 - G108- -1-. Refer to HEATED OXYGEN SENSORS -G39- / -G108- / -G130- / -G131-, REMOVING AND INSTALLING .

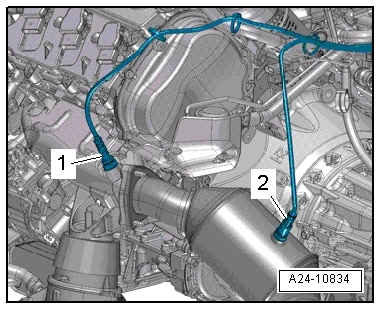

Fig 2: Oxygen Sensors Location, Cylinder Bank 2 (Left)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 4- and remove the heat shield.

Fig 3: View Of Left Side Exhaust Manifold Heat Shield Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1 and 8- and the heat shield bracket.

Fig 4: Identifying Exhaust Manifold, Bracket For Heat Shield And Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -2 through 7 and 9- and remove the exhaust manifold.
