Reducing Agent Tank Cap Switch -F502-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

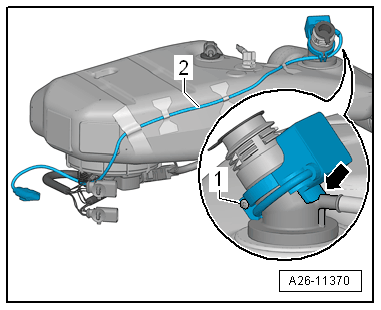

-- Slide the Reducing Agent Tank Cap Switch -F502-, as shown in the illustration, onto the active tank all the way until it stops -arrow-.

-- Tighten the bolt -1-. Refer to Figure.

-- Install the wire -2- and secure it again with adhesive tape.

-- Install the reducing agent active tank. Refer to REDUCING AGENT ACTIVE TANK, REMOVING AND INSTALLING .
