OVERVIEW - Reducing Agent Metering System Control Module -J880-
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

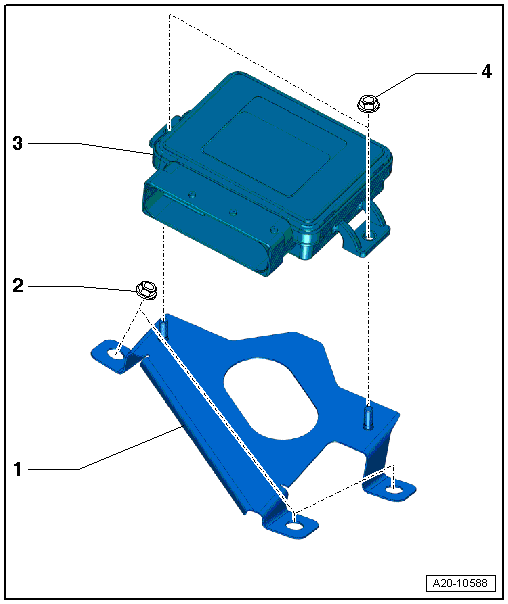

Installed location: The Reducing Agent Metering System Control Module -J880- is located on the right side under the rear bench seat, directly below the floor covering.
- Bracket
- Nut
- 2 Nm
- Reducing Agent Metering System Control Module -J880-
- Check in Guided Fault Finding using the Vehicle Diagnostic Tester
- After replacing, the Reducing Agent Metering System Control Module -J880- must be parameterized. Refer to Guided Functions using the Vehicle Diagnostic Tester.
- Removing and installing. Refer to Reducing Agent Metering System Control Module -J880-, REMOVING AND INSTALLING .
- Nut
- 2 Nm
