Pre-Catalytic Converter, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the whole exhaust system:

Follow the safety precautions when working on the exhaust system. Refer to EXHAUST SYSTEM SAFETY PRECAUTIONS .

-- Remove the noise insulation -1 and 2-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

Fig 1: Identifying Front/Rear Noise Insulation

GWWA10-10441

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Heated Oxygen Sensor -G39-. Refer to Removing .

-- Remove the NOx Sensor -G295- -2- and set aside.

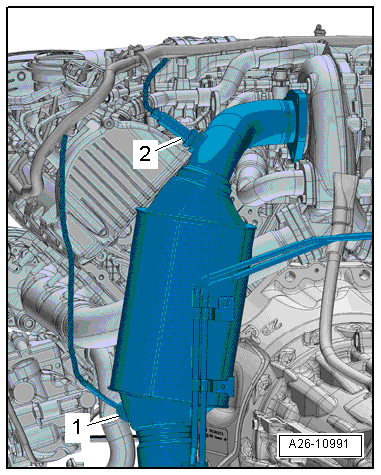

Fig 2: NOx Sensor -G295- Location

GWWA26-10991

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connectors -arrow- from the bracket, disconnect them and then free up the wires.

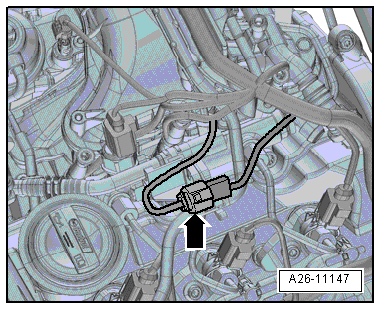

Fig 3: NOx Sensor -G295- Nuts Location

GWWA26-11147

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1, 2 and 3-.

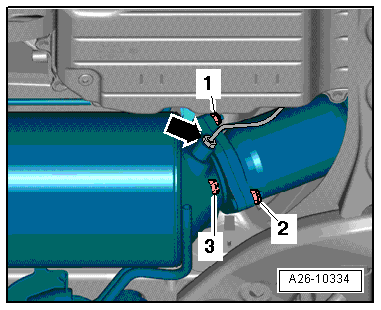

Fig 4: Pre-Catalytic Converter Nuts Location

GWWA26-10334

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -arrow-.

-- Remove the bolt -arrow- from the tab on the pre-catalytic converter.

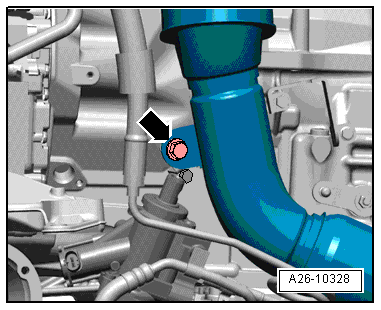

Fig 5: Identifying Bolt -Arrow- From Exhaust Pipe

GWWA26-10328

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows-.

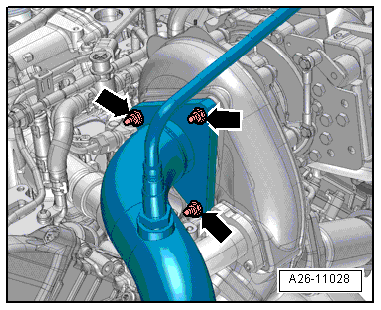

Fig 6: Preliminary Catalytic Converter Flange Nuts

GWWA26-11028

Courtesy of AUDI OF AMERICA, LLC

-- Remove the pre-catalytic converter from the engine compartment.
