Particulate Sensor -G784-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the whole exhaust system:

Follow the safety precautions when working on the exhaust system. Refer to EXHAUST SYSTEM SAFETY PRECAUTIONS .

-- Loosen the mounting elements -arrows- and move the heat shield to the left.

Fig 1: Identifying Retainers -Arrows- And Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

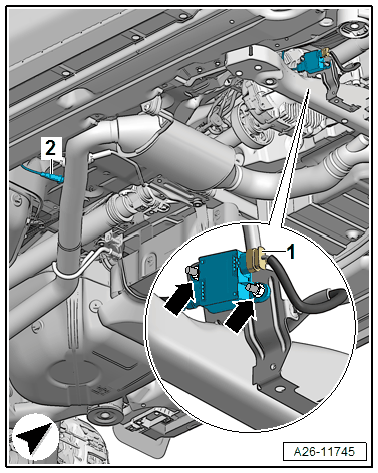

Fig 2: Particulate Sensor -G784- Nuts Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and remove the Particulate Sensor -G784- control module.

-- Remove the Particulate Sensor -G784- -2-.
