Exhaust Gas Temperature Sensor 2 -G448-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Cover -Arrows-

Courtesy of AUDI OF AMERICA, LLC

Carefully pull the engine cover off the four retaining pins one after the other -arrows-.

WARNING:

When working on the whole exhaust system:

Follow the safety precautions when working on the exhaust system. Refer to EXHAUST SYSTEM SAFETY PRECAUTIONS .

-- Remove the -2- Exhaust Gas Temperature Sensor 2 -G448- connector from the bracket, disconnect it and free up the wire.

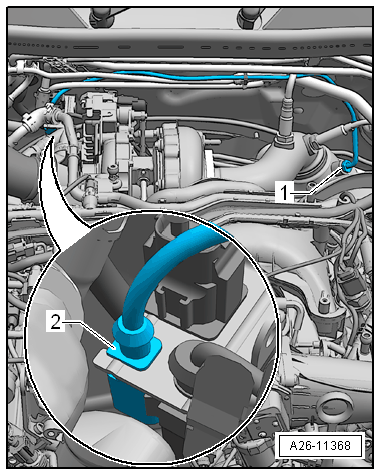

Fig 2: Exhaust Gas Temperature Sensor 2 -G448- Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Exhaust Gas Temperature Sensor 2 -G448- -1-.
