EGR Temperature Sensor -G98-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Cover -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover in direction of -arrows-.

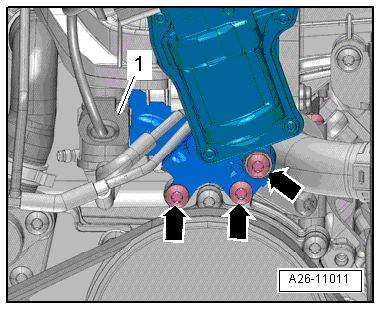

-- Remove the bolts -arrows- and then press the bracket with the EGR Cooler Switch-Over Valve -N345- -1- to the side.

Fig 2: Locating Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connector -1- from the bracket, disconnect it and free up the wire.

Fig 3: Locating Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the EGR Temperature Sensor -G98- -2-.
