Mass Airflow Sensor -G70-: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect electrical harness connector at Mass Airflow Sensor -G70-.

-- Disconnect air guide hose -4- from the turbocharger.

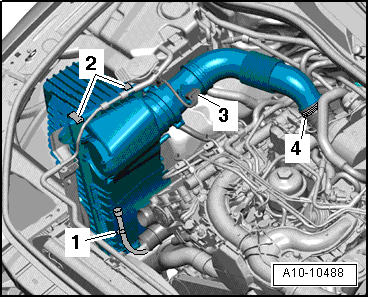

Fig 1: Connectors And Clips

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows-.

Fig 2: Identifying Mass Air Flow (MAF) Sensor G70 Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Mass Airflow Sensor -G70- from the guide on the upper air filter housing.
