Differential Pressure Sensor -G505-: Removing
WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover. Refer to ENGINE COVER .

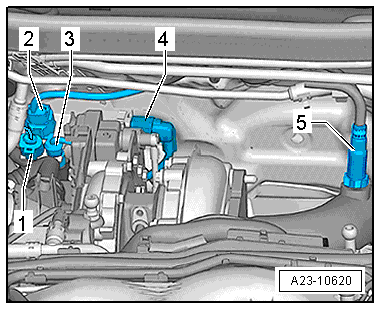

-- Disconnect the connector -4-.
-- Disconnect Differential Pressure Sensor -G505- from bracket and remove.
-- Spray the hoses from the Differential Pressure Sensor -G505- with thinner before removing.
-- Pull the hoses straight off the connections to remove. The connections break off of the Differential Pressure Sensor -G505- very easily.
