Overview - Air Guide Pipes And Air Guide Hoses

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

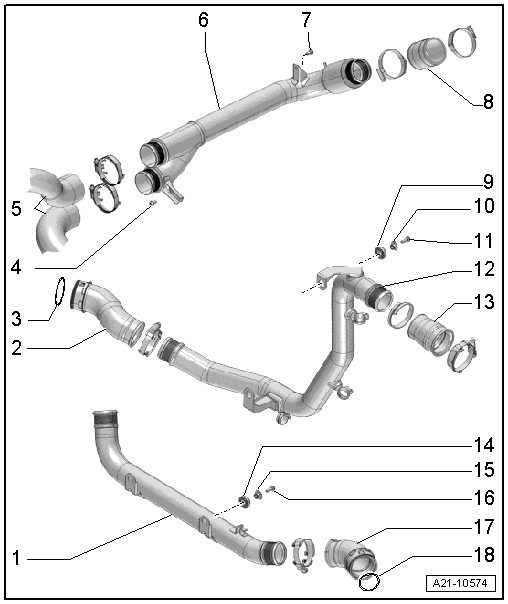

Fig 1: Air Guide Pipes And Air Guide Hoses Overview

Courtesy of AUDI OF AMERICA, LLC

Lower Air Duct Pipe
Air Guide Hose
- Installing. Refer to Fig 2.
O-ring
- Replace
Bolt
- Tightening specification: 9 Nm
Air Guide Hoses
- Installing. Refer to Fig 2.
Right Air Guide Pipe
Bolt
- Tightening specification: 9 Nm
Air Guide Hose
- Installing. Refer to Fig 2.
Grommet
Sleeve
Bolt
- Tightening specification: 5.5 Nm
Air Duct Pipe in the Center
Air Guide Hose
- Installing. Refer to Fig 2.
Grommet
Sleeve
Bolt
- Tightening specification: 9 Nm
Air Guide Hose
- Installing. Refer to Fig 2.
O-ring
- Replace

Fig 2: Identifying Air Guide Hose Clamps -a- & -b-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The hose connections as well as the air guide pipes and hoses must be free of oil and grease before installing.

Secure all hose connections with standard production hose clamps.

In order to be able to securely mount the air guide hoses on their connectors, spray the screws on the previously used clamps with a rust remover.

Tightening specification for:

Hose clamp -a- = 13 mm wide: 5.5 Nm
Hose clamp -b- = 9 mm wide: 3 Nm

Fig 3: Identifying Clip In Release And Lock Positions

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The air guide pipes must be free of oil and grease before installing.

Replace the O-ring for the air duct pipe and connector coupling if damaged.

Make sure the O-ring fits all the way around inside the groove on the air duct pipe.

Coat the sealing surface and the O-ring with a silicone-free lubricant.

-- Pull the clip into the release position -1-.

-- Install the air duct pipe all the way and press the clamp into its locking position -2-.

-- Press the air duct pipe on again and pull to make sure the connection is engaged correctly.
