Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

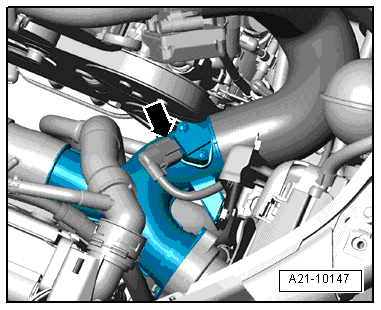

Fig 1: Identifying Charge Air Pressure Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -arrow-.

-- Remove the bolts for the Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42- and remove the Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42- from the connection.
