Underbody Trim Panel Overview

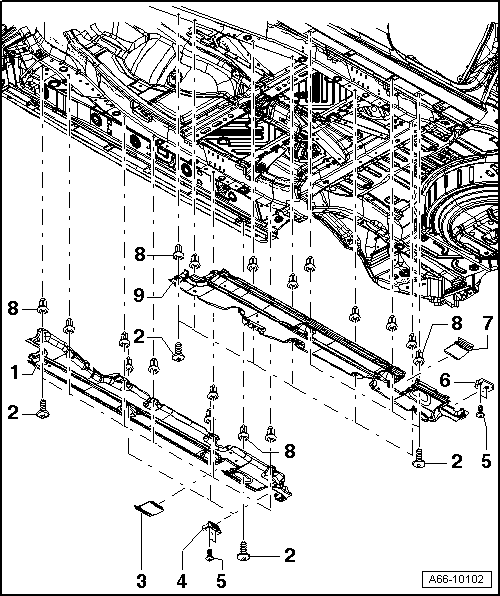

Fig 1: Identifying Underbody Trim Assembly Overview
GWWA66-10102Courtesy of AUDI OF AMERICA, LLC
  1. Right Underbody Trim
  2. Bolt
    • 2 Nm
  3. Cover
    • Clipped in
  4. Right Mount

    Hoist mount

  5. Bolt
    • 9 Nm
  6. Left Mount

    • Hoist mount

  7. Cover
    • Clipped in
  8. Clip
  9. Right Underbody Trim
