Hood, Adjusting
Special tools and workshop equipment required
- Gauge - Gap Adjustment 3371
Courtesy of AUDI OF AMERICA, LLC

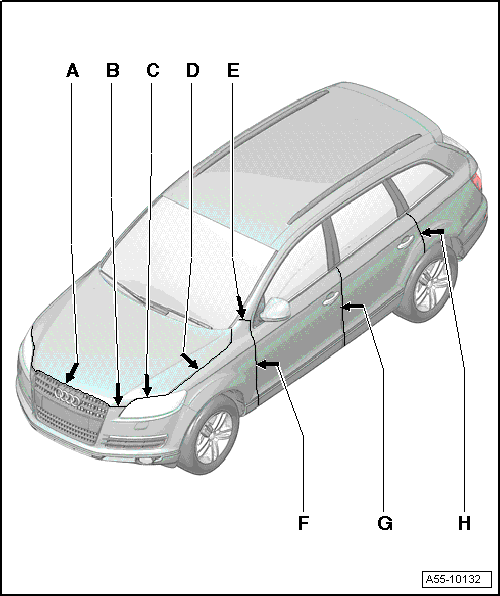

Panel Gap Dimensions
-- Adjust hood on hinge according to specified dimensions.
- -A- = 4.5 mm
- -B- = 4.5 mm
- -C- = 5.0 mm
- -D- = 3.0 mm
- -E- = 2.7 mm
