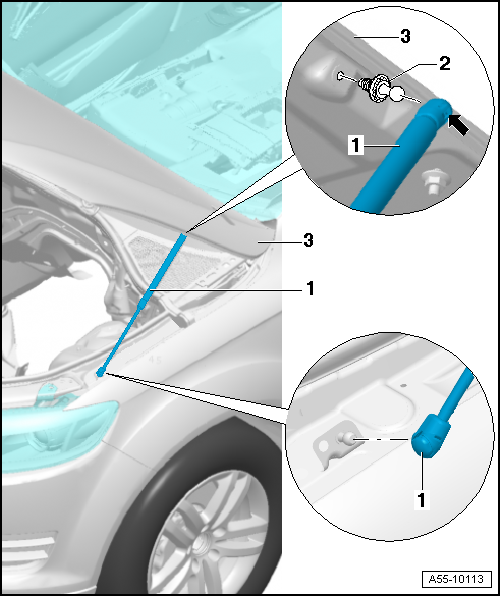

Gas-Filled Strut, Removing And Installing
- Gas Strut
-- Support hood or secure it from falling down.
-- Gently lift retaining springs at both ends of gas-filled strut using a screwdriver -arrow- and unclip gas-filled strut.
-- When installing, press gas-filled strut onto ball stud and engage.
-- The gas-filled strut tube is installed on the hood side.
- Ball Stud
- Tightening specification: 14 Nm
- Hood
