Separating Cover from Padding

Removing

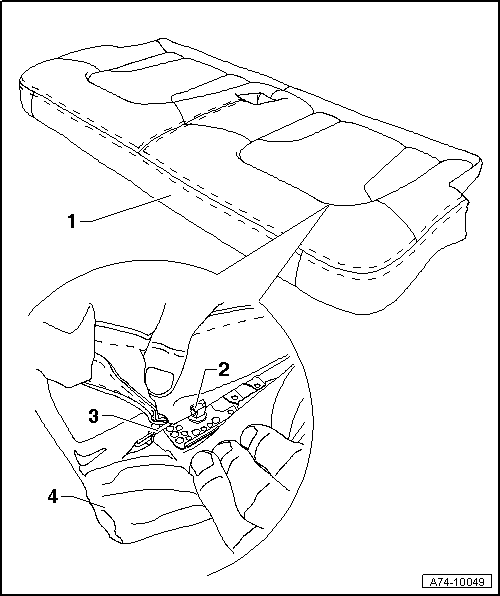

Fig 1: Separating Cover From Padding
GWWA74-10049Courtesy of AUDI OF AMERICA, LLC
  1. Seat Cover
  2. Clip
  3. Cover Wire
  4. Cushion

Procedure

Fig 2: Prying Cover -1- Away From Clip -2- To Remove Cover Wire -3-
GWWA74-10055Courtesy of AUDI OF AMERICA, LLC

-- Pry cover wire -3- out with a screwdriver from behind direction of -arrow A- out of clip -2-.

-- Do the same with all other clips.

-- Remove cover -1- from cushion -4-.

Installing

Install in reverse order of removal.
